CARACTERÍSTICAS DE HARDWARE
Interface 1× 10G Ethernet Port
Botón Reset
Fuente de alimentación 802.3at PoE or 12V/2.5A DC
Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
Consumo de Poder • 25.44 W (For PoE)
• 22.57 W (For DC)
Dimensiones (An x Pr x Al) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antena • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Montaje Ceiling / Wall Mounting (Kits Included)
CARACTERÍSTICAS INALÁMBRICAS
Coverage 140㎡(1500 ft²)§
Concurrent Clients 380+**
Estándares inalámbricos IEEE 802.11 a/b/g/n/ac/ax/be
Frecuencia 6 GHz, 5 GHz, and 2.4 GHz
Tasa de señal 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Funciones inalámbricas • MLO‡
• 4K-QAM‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO (2*2 DL/UL MU-MIMO)‡
• HE320‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Seguridad inalámbrica • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Poder de transmision < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
ADMINISTRACIÓN
Aplicación Omada Yes
Gestión centralizada • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Acceso a la nube Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Alertas de correo electrónico Yes
Control de LED ENCENDIDO / APAGADO Yes
Gestión de control de acceso MAC Yes
SNMP v1, v2c, v3
Registro del sistema Local / Remote Syslog Yes
Gestión basada en web Yes
OTROS
Certificación CE, FCC, RoHS, IC

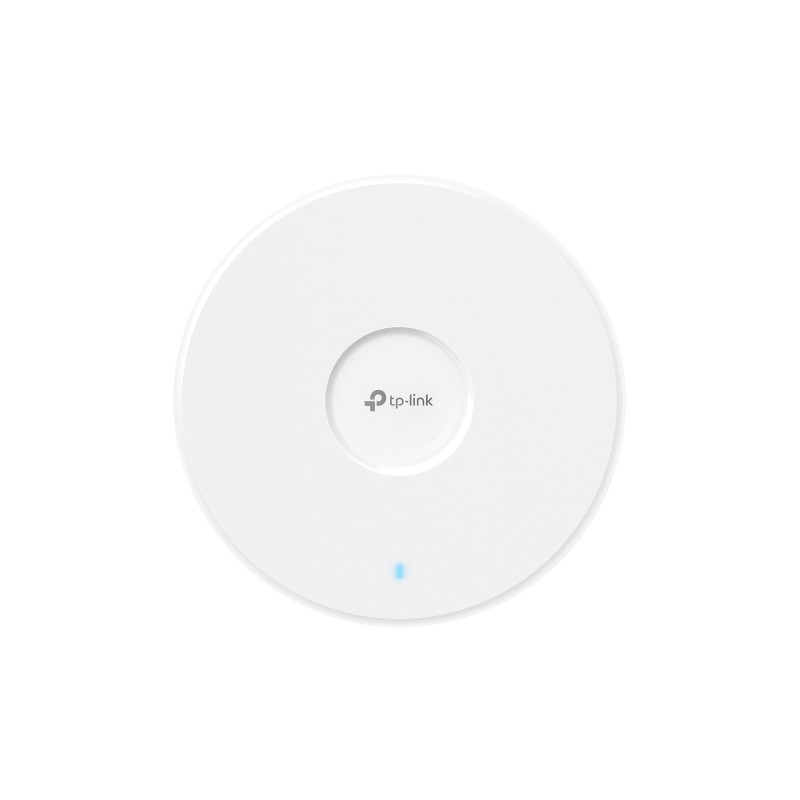

contenidos del paquete • EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Ambiente • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
