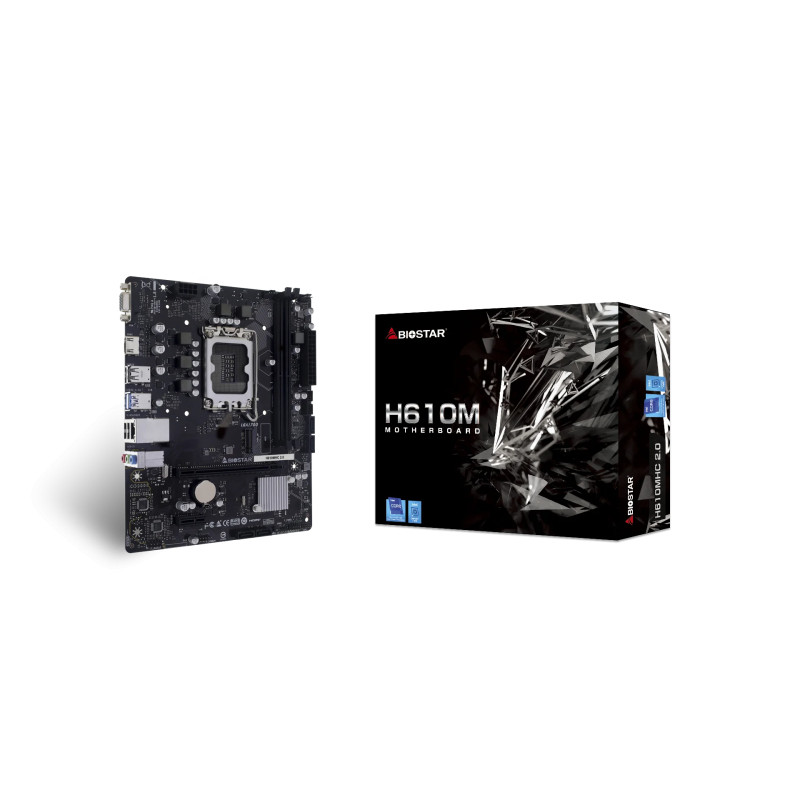

H610MHC 2.0
Chipset Intel H610
CPU SUPPORT Support for 12th/13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 - 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32 GB DDR4 module
Support Intel® Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
* Specifications vary by CPU types
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 4 x USB 3.2 (Gen1) port
(2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port
(4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot
Intel H610 Chipset
1x PCIe 3.0 x1 Slot
* Specifications vary by CPU types
REAR I/O 1 x HDMI 1.4 Port
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
OS SUPPORT Supports Windows 10 (64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x M.2 Anchor
