CARACTERÍSTICAS DE HARDWARE
Interfaz 1 10/100/1000 Mbps RJ45 WAN Port
3 10/100/1000 Mbps RJ45 LAN Ports
Botones Reset Button, WPS/Wi-Fi Button
Fuente de Alimentación Externa 12V/1A
Dimensiones 7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm)
Antenas Four External antennas
CARACTERÍSTICAS INALÁMBRICAS
Estándares Inalámbricos IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/g/b 2.4 GHz
Frecuencia 2.4 GHz and 5 GHz
Tasa de Señal 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz*
Funciones Inalámbricas Enable/Disable Wireless Radio, WMM, Wireless Statistics, Band Steering
Seguridad Inalámbrica WPA/WPA2/WPA3 encryptions
Potencia de Transmisión CE:
FCC:
Planificador de Red Inalámbrica Support 2.4 GHz and 5 GHz Wireless Schedule
Tecnología Mesh EasyMesh Compatible, and support 802.11k/v/r
CARACTERÍSTICAS DE SOFTWARE
Características Avanzadas Muti-SSID, Guest Network, QoS (Quality of Service), TX Beamforming, MU-MIMO, OFDMA, Airtime Fairness
Modo de Funcionamiento Router, Access Point
Tipo de WAN Dynamic IP/Static IP/PPPoE/PPTP/L2TP (Multi-EWAN)
Gestión Local management: WebGUI management, Aginet app management
Remote management: Aginet ACS, TR-069, TR-098, TR-181,TR-111, and TR-143 for service providers
Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it)
DHCP Server, DHCP Client List, Address Reservation
Reenvío de Puertos Virtual Server, Port Triggering, UPnP, DMZ
DNS Dinámico DynDns, NO-IP
VPN Pass-Through IPSec, PPTP, L2TP
Control de Acceso Parental Controls, White List, Black List
Seguridad Firewall DoS, SPI Firewall, IP and MAC Address Binding
Protocolos IPv4, IPv6
Servidor VPN PPTP, OpenVPN, IPSec
Otros

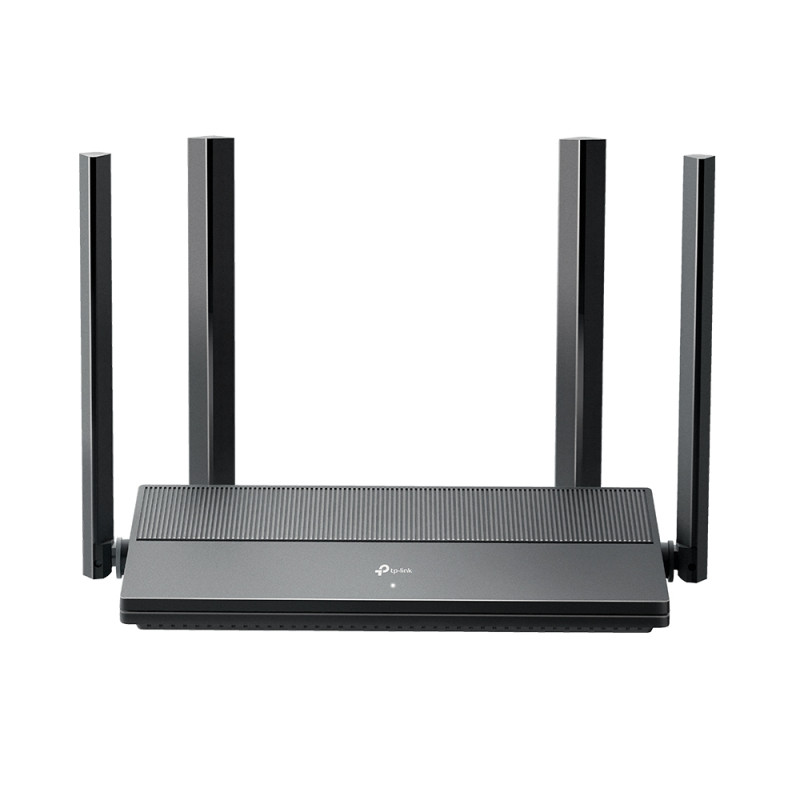

Contenido del Paquete AX1500 Dual Band Gigabit Wi-Fi 6 Router EX141
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requisitos Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Factores Ambientales Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
