CARACTERÍSTICAS DE HARDWARE
Interface 1× 2.5Gigabit Ethernet Port
Botón Reset
Fuente de Alimentación 802.3at PoE or 12V / 1.5A DC
Consumo de Energía • EU: 18.05 W(For PoE); 16.39 W(For DC)
• US: 19.8 W(For PoE); 17.8 W(For DC)
Dimensiones (W X D X H) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antena Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
Montaje Ceiling /Wall Mounting (Kits included)
CARACTERÍSTICAS INALÁMBRICAS
Coverage 140㎡(1500 ft²)§
Concurrent Clients 250+**
Estándares Inalámbricos IEEE 802.11ax/ac/n/g/b/a
Frecuencia 2.4 GHz and 5 GHz
Tasa de Señal • 5 GHz: 4804 Mbps
• 2.4 GHz: 574 Mbps
Funciones Inalámbricas • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming △
• Omada Mesh△
• Beamforming
• MU-MIMO
• Rate Limit(Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• MAC Authentication
• HE160 (160 MHz Bandwidth)‡
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP
Seguridad Inalámbrica • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4000
• Wireless Isolation Between Clients
• SSID VLAN
• WIDS/WIPS△
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potencia de Transmisión • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
ADMINISTRACIÓN
Omada App Yes
Centralized Management • Omada Pro Software Controller
• Omada Pro Cloud-Based Controller
Cloud Access Yes. Require the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller.
Alertas de Correo Electrónico Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Pro Cloud-Based Controller.
Otros
Certificacion CE, FCC, RoHS

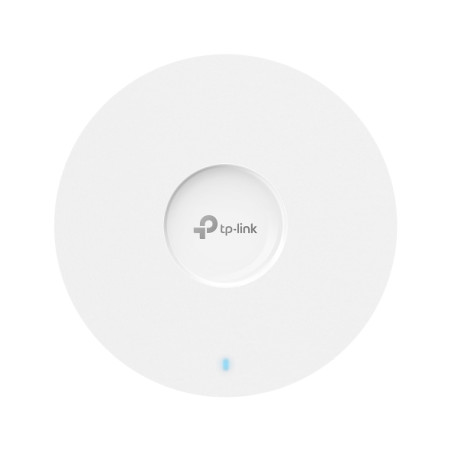

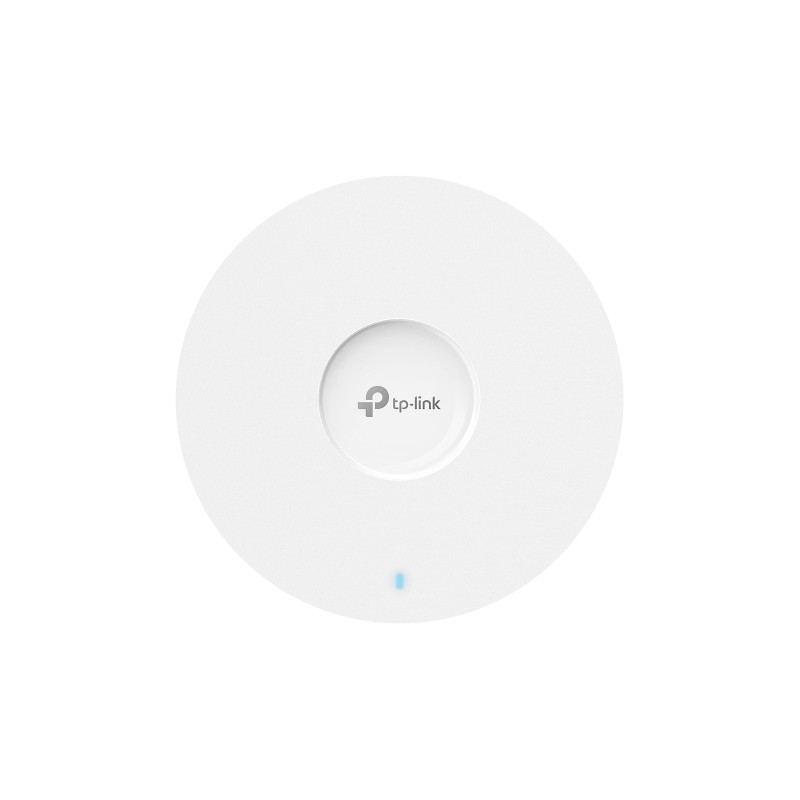

Contenidos del Paquete • AP9670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Requisitos del Sistema Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ambiente • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
