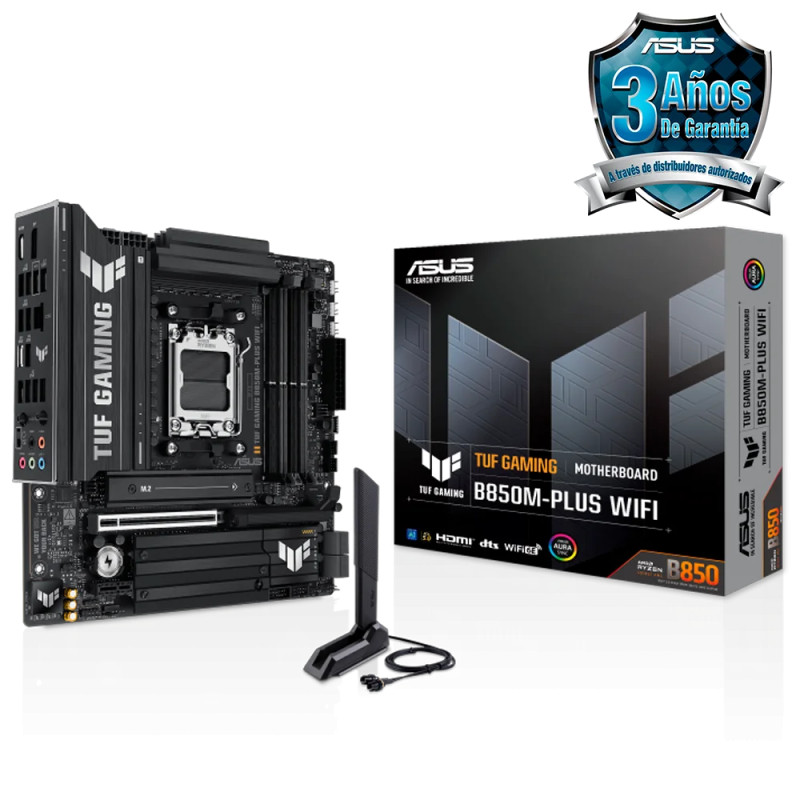

MOTHERBOARD ASUS AM5 TUF GAMING B850M-PLUS WIFI DDR5 BOX

Procesador

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

AMD B850 Chipset

Memoria

4 x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Slots

1 x PCIe 5.0 x16 slot (supports x16 mode)

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

1 x PCIe 4.0 x1 slot

Gráficos

1 x DisplayPort**

1 x HDMI™ port***

Almacenamiento

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Impedance sense for front and rear headphone outputs

Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

Supports up to 32-Bit/192 kHz playback*

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

Audio cover

Unique de-pop circuit

Conectividad y redes

Wi-Fi 6E

2×2 Wi-Fi 6E (802.11ax)

Supports 2.4/5/6GHz frequency band

Bluetooth® v5.3

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Conectores Internos

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x USB 10Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

Conectores Traseros

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Factor de forma

micro-ATX (24.4 cm x 24.4 cm)
